Understanding RC Plane Motors and ESCs
Let's start with the RC plane motor.
RC Plane Motors: Types and Components
On the list of the most important parts of an RC airplane, the motor parts make the top 5. This is the heart of your aircraft. They provide the necessary thrust to keep it airborne.
RC Motor Types
Ideally, RC plane motors come in two types: outrunner and inrunner.
-
Inrunner Motors

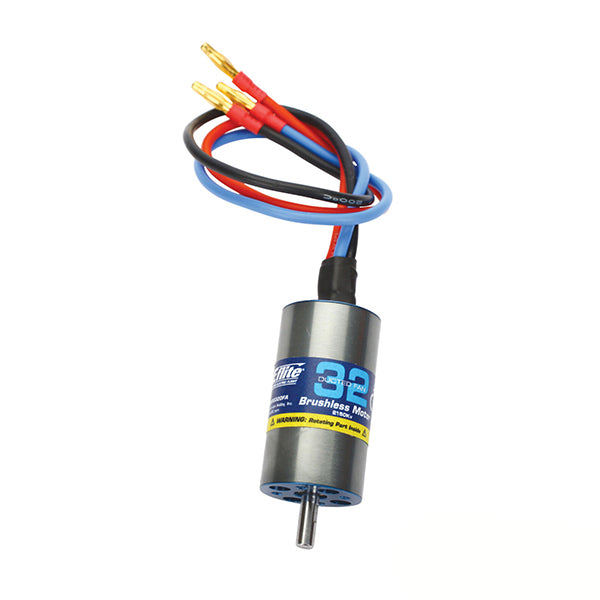

Inrunner motors, on the other hand, have the magnets inside and the stators outside. This design results in higher RPMs, making them more suitable for high-speed applications. However, in order for one to reach their desired torque and speed balance, inrunner motors are often paired with gearboxes. This plane motor type is a 4.5 out of 5, and it's highly appreciated for its speed capacity.
-
Outrunner Motors

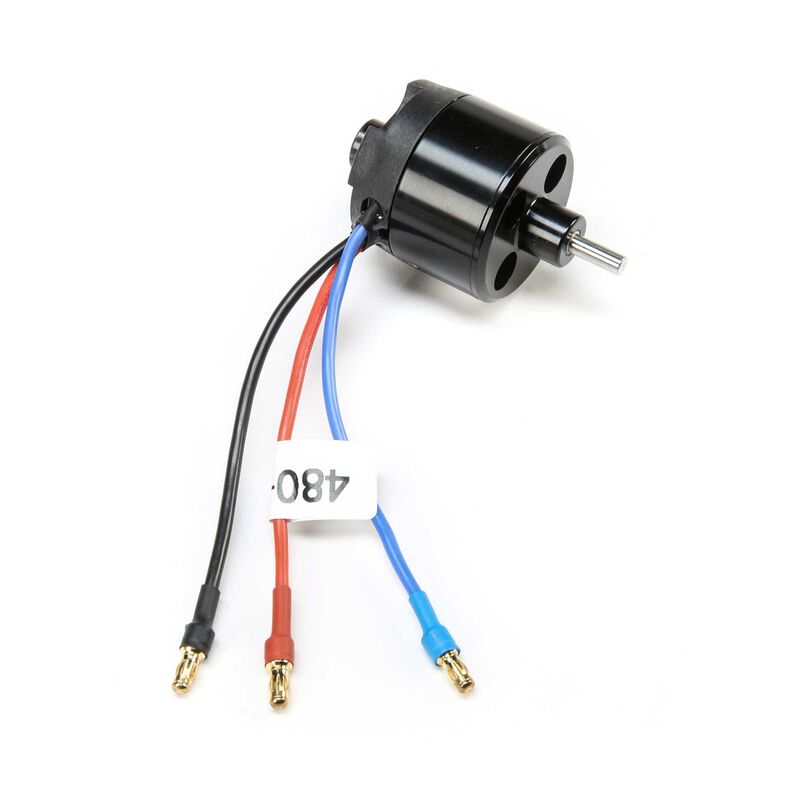

Outrunner motors offer high torque and efficiency and are ideal for planes that require significant power for takeoff and sustained flight. Outrunners offer more thrust than speed. This is because they have their stators on the inside and the magnets on the rotating casing, which provides better cooling and higher torque at lower RPMs. As a motor type, outrunner motors usually receive high ratings. Most times, their performance and durability get them a 4.8 out of 5.0 star rating.

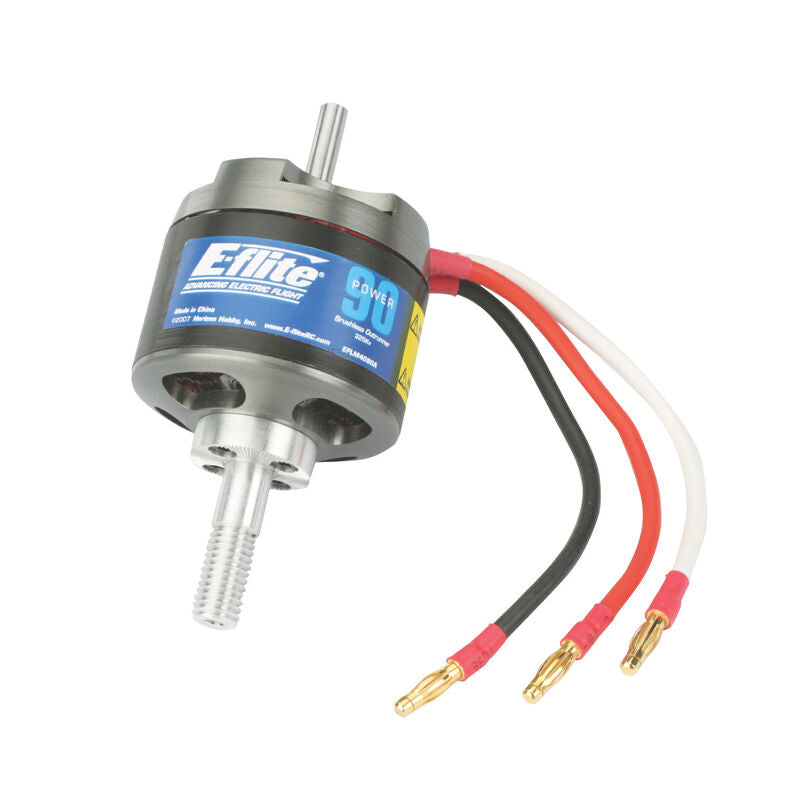

One of the most popular outrunner motors is the E-flite Power 90 Brushless Outrunner Motor, 325Kv: 4mm Bullet. This motor delivers superior performance for larger RC airplanes, balancing speed and torque with a 325Kv rating. Its key features include:
-
High Performance: Ideal for aerobatics and stable flights.
-
Brushless Design: Ensures maximum efficiency, longevity, and reduced maintenance.
-
4mm Bullet Connectors: Provides secure, efficient connections to your ESC.
In addition to this, the E-flite Power 90 Brushless Outrunner Motor, 325Kv: 4mm Bullet has a KV rating of 325kv, a max efficiency current of 35-44A, a max surge current of 85A for 15 seconds, and a shaft diameter of 8mm. Its recommended battery is the 6S LiPo 22.2V, with which it'll cause your aircraft to soar.
RC Motor Components
Your choice of an RC plane motor includes its components. Some of these include:
Connector Types
Motor connectors ensure a secure connection between the motor and the ESC. These connectors have different types, including bullet connectors, flat connectors, and open ends. Choosing the right connector type is crucial for minimizing resistance and ensuring reliable performance.
Motor Parts and Design
The design and quality of motor parts directly impact the performance and longevity of your RC airplane motor. High-quality bearings, magnets, and windings are essential for optimal performance. For this reason, you should refine your choice by considering the motor design that best suits your aircraft's needs. Outrunner and inrunner designs cater to different performance requirements and preferences.
RC Airplane ESCs
An Electronic Speed Controller (ESC) regulates the power supplied to the motor, ensuring smooth and precise control over the aircraft's speed and direction. It is an essential component the plane cannot function without. Here's what you need to know about choosing such airframe parts.
Choosing the Right ESC
When selecting an ESC, consider factors such as current rating, voltage compatibility, and programming features. Matching the ESC with the motor is also essential, as it's important for functionality, optimal performance and damage prevention. So:
-
Look for ESCs with appropriate current ratings for your motor. A good rule of thumb is to choose an ESC with a current rating slightly higher than the motor's maximum current draw.
-
You should also ensure the chosen ESC can handle the voltage range of your battery. Most ESCs are compatible with a wide range of voltages, but it's crucial to verify this before making a purchase.
Luckily, these ESCs from RC Visions check all the boxes in terms of performance, current rating and voltage range.

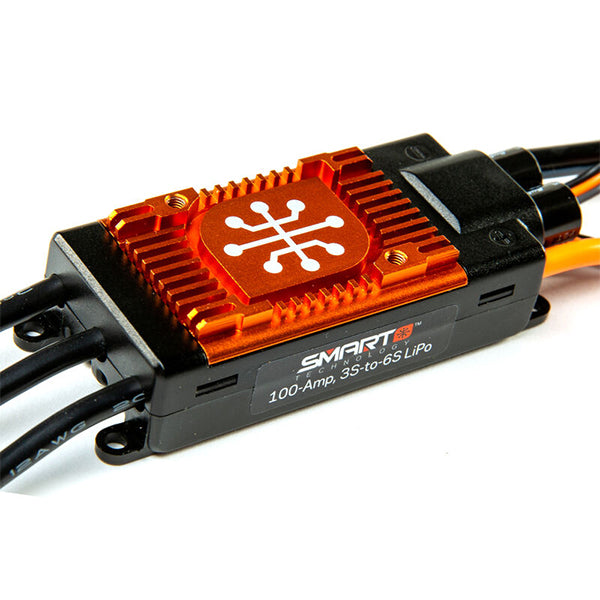

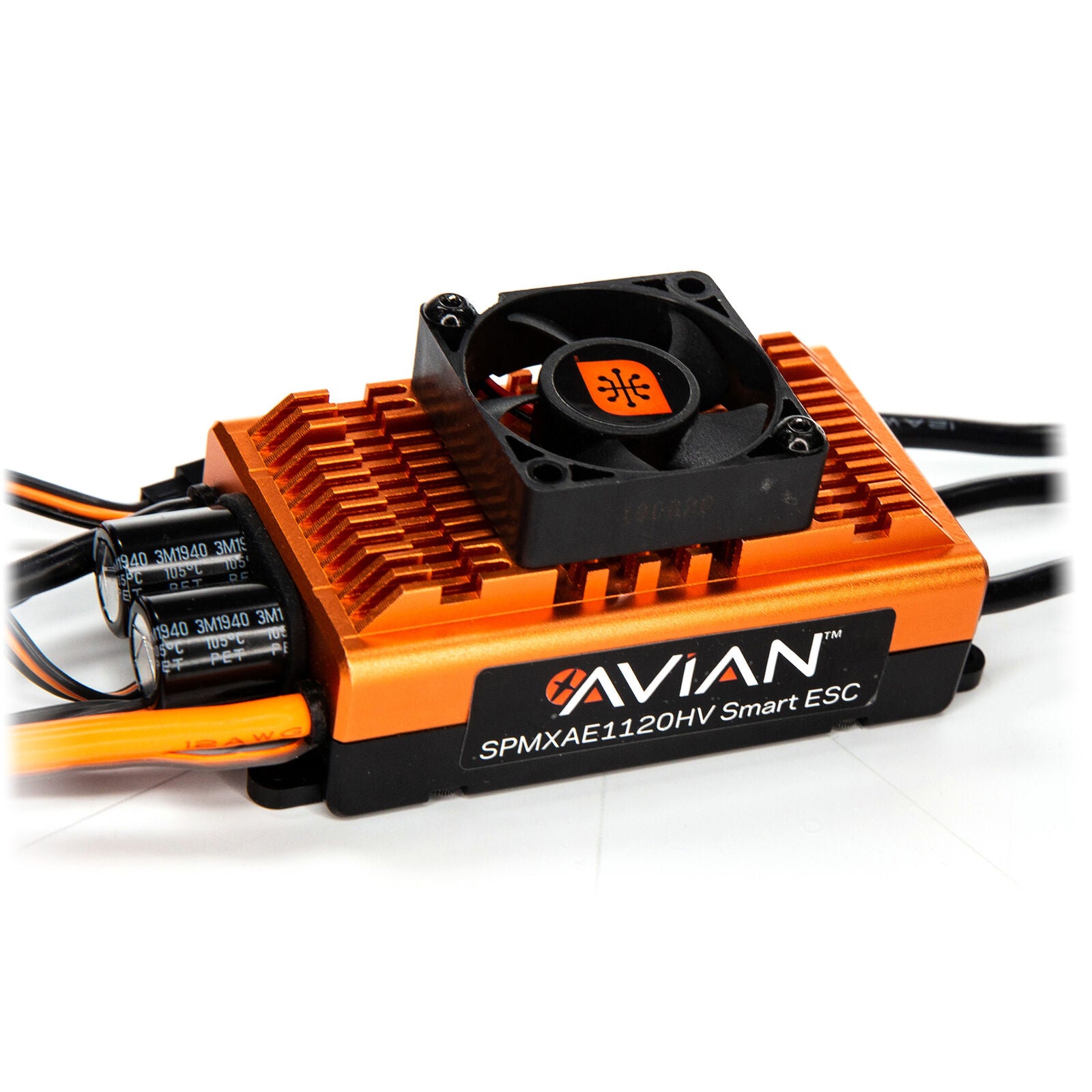

The Spektrum RC Avian 100 Amp Brushless Smart ESC is perfect for pilots flying larger, high-performance RC planes. With its Smart technology, you get real-time telemetry data like battery voltage, current, temperature, and RPM, which is super helpful for making those in-flight decisions. Plus, with the Spektrum Smart Programmer, this ESC is programmable. So you can tweak it to fit your exact needs. Finally, with its 100-amp powerhouse, this ESC is the perfect choice for pilots who are into aerobatics or complex maneuvers. It offers top-notch power management and integration with other Spektrum Smart components.

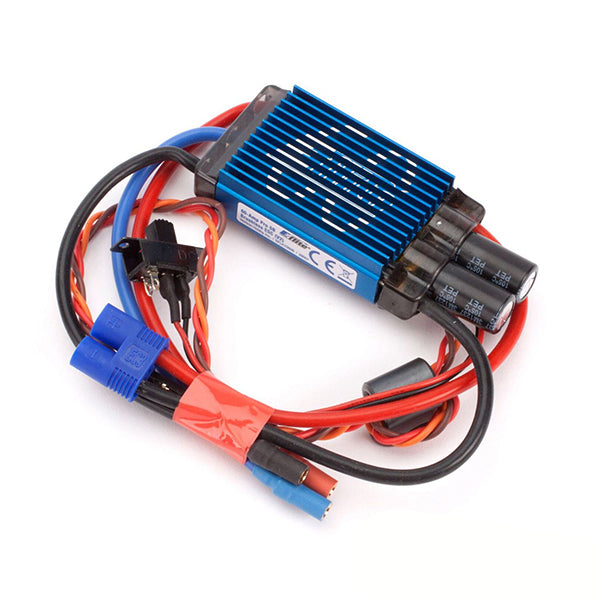

On the flip side, the E-flite 60-Amp Pro Switch-Mode V2 BEC Brushless ESC is all about simplicity and reliability, making it a great fit for mid-sized RC planes. With a solid 60-amp capacity, it delivers stable power to your receiver and servos, thanks to its built-in switch-mode BEC. This ESC is easy to set up and use, with programmable settings for throttle response, brake, and timing. It's also budget-friendly, making it a hit among hobbyists who want dependable performance without breaking the bank.
Refining Your Choice
Choosing the right motor and ESC involves refining your selection based on factors like motor design, connector type, and part quality. You can:
-
Refine by motor design by considering the specific requirements of your aircraft, like the desired balance between torque and speed, before choosing an outrunner like the Power 90 Brushless Outrunner Motor or any inrunner refine motor of your choice.
-
Refine by connector type by selecting the motors and ESCs that have compatible connectors. This guarantees a secure connection.
-
Refine by brand by choosing RC airframe parts from companies with high customer ratings, like Spektrum, E-flite, and Hobbywing, to name a few.
As an RC pilot, you need the best RC motors and ESCs for your aircraft. Finding these parts isn't difficult as you can visit online hobby stores like RC Visions. However, choosing one that's compatible with your airplane, its connector type, and other electronics is crucial for its performance and functionality. This is why you can refine your choice by connector type, motor design, part type, and even brand. This way, you can make an informed decision that will keep your aircraft soaring high. See you in the skies!
