Vanquish Products VS4-10 Origin Classic 1/10 4WD Rock Crawler Kit (Clear)
Features:
- Low-forward motor placement for improved weight distribution
- 6.5% factory overdrive for enhanced turning and climbing
- Hardened chromoly transmission shafts
- Sintered internal transmission gears
- Molded F10 straight axles with integrated truss
- 49° of steering angle
- Incision 90mm S8E shocks with dual O-ring seals
- Heavy-duty steel C-channel frame rails
- Integrated clipless body mounting system
- Adjustable shock tower positions molded into inner fenders
Includes:
- (1) VS4-10 Origin Classic 1/10 4WD Rock Crawler Kit with:

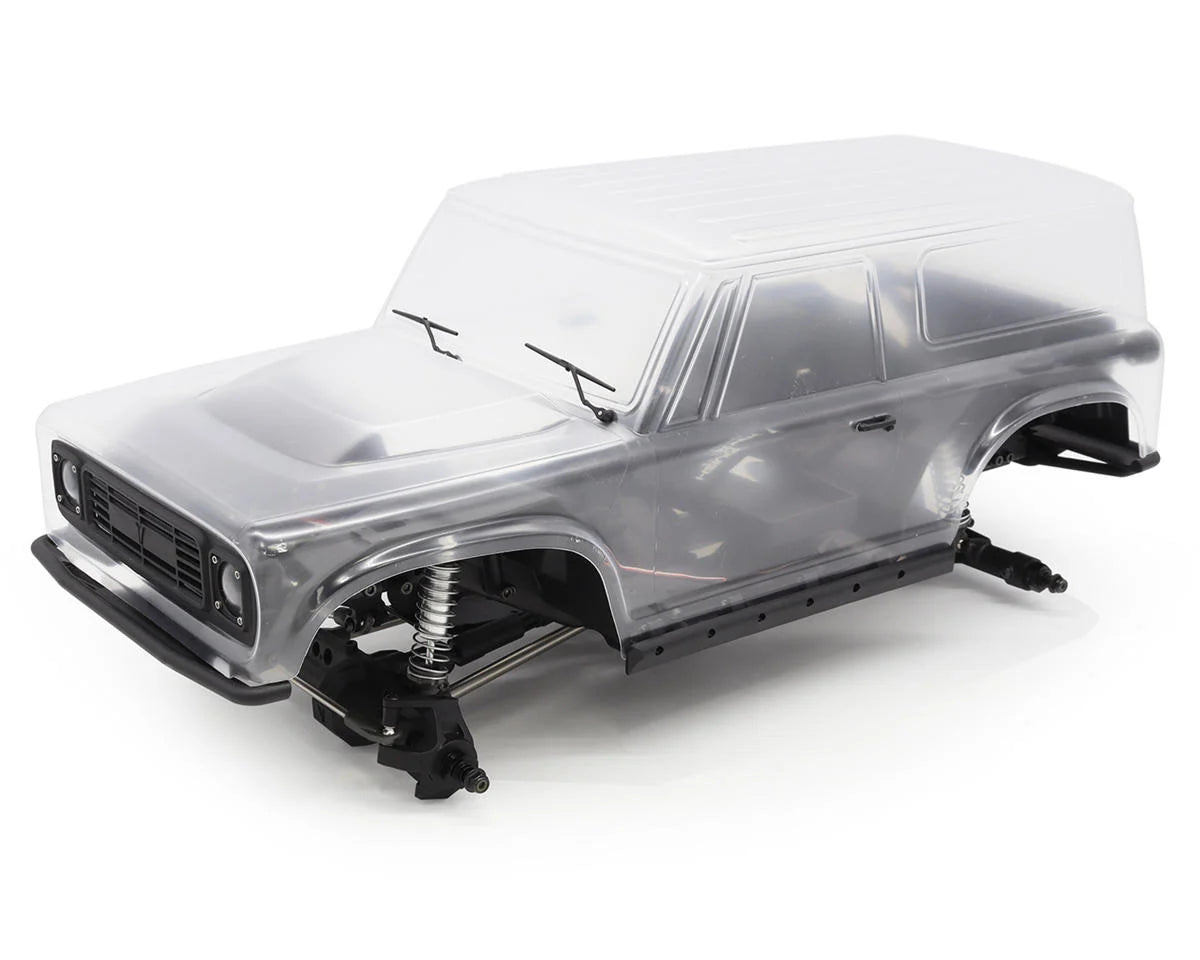

- (1) Clear Origin Classic Body
- (1) VFD Transmission Assembly
- (2) F10 Molded Axles
- (4) Incision 90mm S8E Shocks
- (4) Molded Inner Fenders and Shock Towers
- (1) Stainless Steel Links and Pivot Hardware Set
- (1) 15T 32P Pinion Gear
- (1) 52T 32P Spur Gear
- (1) 25T Servo Horn
- (1) 30wt Shock Oil Bottle
- (1) Threadlock Container
- (1) Grease Container
- Product Manual
Needed To Complete:
- (1) 2+ Channel Transmitter/Receiver System
- (1) 2-4S (7.4V - 20V) LiPo Battery
- (1) 540 Class Motor
- (1) ESC (Electronic Speed Control)
- (1) Compatible Steering Servo (25T Servo Horn Included)
- (4) 1.9x4.65" Tires
- (4) 1.9" SLW Hub Compatible Wheels (See compatible wheels here)
- (1) Compatible Battery Charger
- Paint for Body
- Assembly Tools
Specifications:
| Scale |
1:10 |
| Drive |
4WD |
| Power Source |
2-4S LiPo (7.4V-20V) |
| Length |
- |
| Wheelbase |
12.32in (313mm) |
| Width (Hex to Hex) |
7.17in (182mm) |
| Height |
- |
| Weight |
- |
| Assembly Level |
Kit* |
*Tech Note: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
