NOTE:
- A PH2.0 to female JST adapter is required to connect a JST battery to the receiver.
- The D4L system requires D4L compatible motors. Click here for a full listing of compatible motors.
Features:
- 2.4GHz eliminates interference
- Built in ESC with forward, reverse and brake functions takes up less room under the body
- Included sound module simulates engine start up, forward, reverse, idle and engine shut down sounds
- Included light controller provides headlights, auxiliary lights, double flash lights, turn signals, brake lights and reverse lights
Specifications:

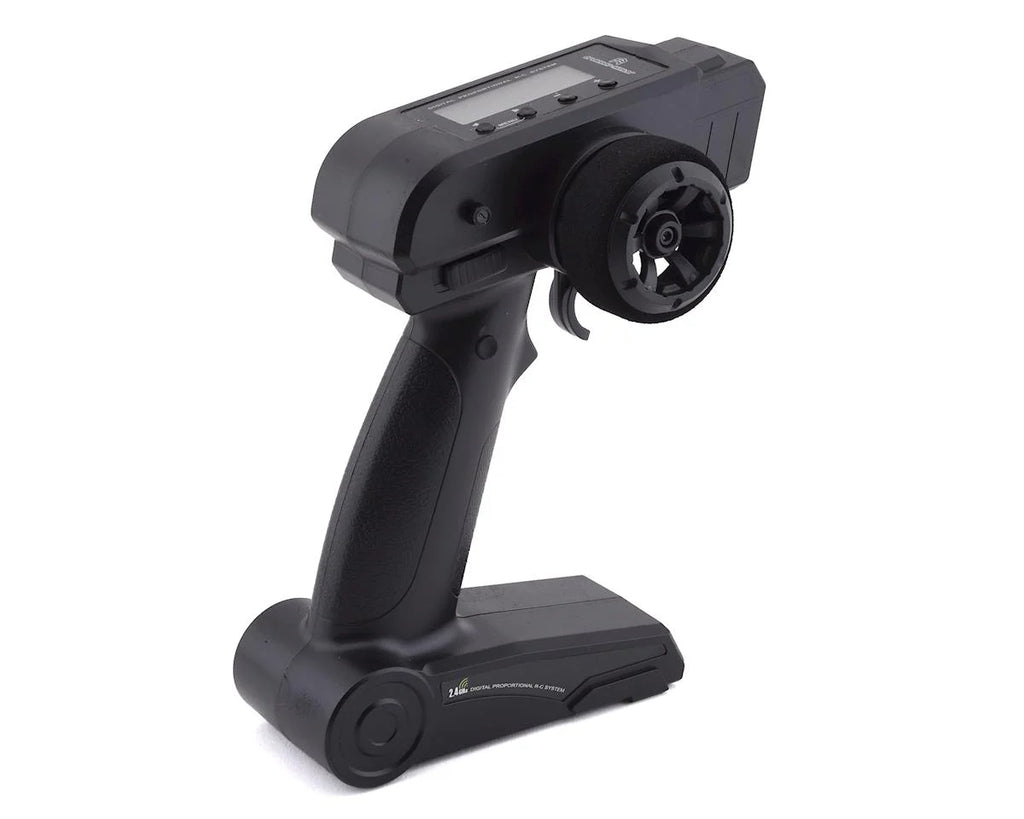

- Transmitter:
-
Operating Voltage: 4.4-8.4V
-
Frequency: 2.4GHz
-
FHSS Output Power: <100mW
-
Power Supply: 4 AA Batteries
-
Screen Type: LED

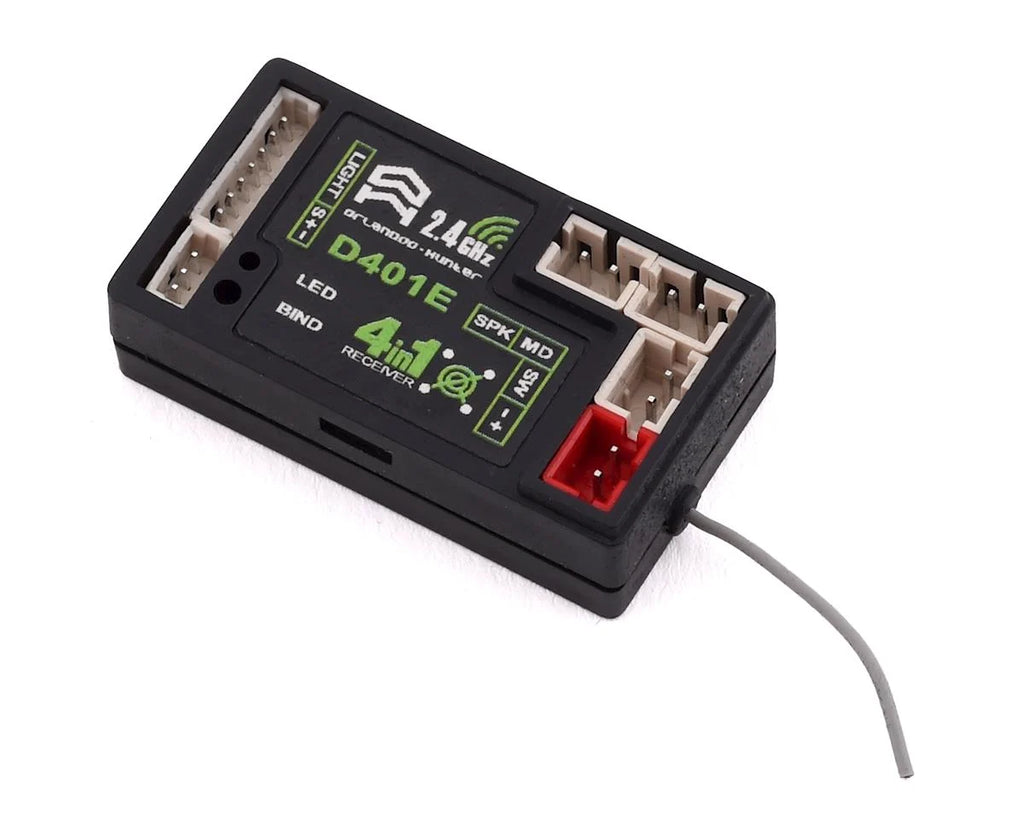

- Receiver Module:
-
Operating Voltage: 6V-8.4V (2S LiPo or 6 cell NiMH)
-
ESC: Brushed Motor up to 1.8A
-
Sound Simulator: Amp up to 4.5W
-
BEC: Output 3.3V/0.8A
Includes:
- (1) D4L Transmitter
- (1) D401E 4-in-1 Recever
- (1) Light Expansion PCB
- (1) Flat Cable
- (1) On/Off Switch
- (1) Speaker
- (4) F4 LED
- (1) SMD Four Color LED
- (1) Seven color teflon wire
- (2) Heat shrink tube
- (1) Transparent Heat shrink tube
