Description
Features:
- ESC:
- Input Voltage Range 2S-8S LiPo
- Sensorless, Sensored and SmartSense™ Running Modes
- Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
- CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 40MM cooling fan
- Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
- Waterproof design for all weather conditions
- Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Easily tune and update ESC with USB and Bluetooth™ programming options
- Castle Link USB programming kit (coupon included with purchase)
- Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store
- Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
- Motor:
- High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
- Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
- Proprietary winding techniques allow Castle to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
- Updated modern and sleek design; looks as cool as it performs.
- IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
- QUIETSENSE™ technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield™ in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups.
- OPTIMIZED design eliminates the need for mechanical timing adjustments. This sensor alignment method delivers uniform timing and torque in both directions, automatically.
- Updated modern and sleek design; looks as cool as it performs.
Specifications:
- ESC:
- Input Voltage Range: MIN: 2S LiPo , MAX: 8S LiPo 33.6V
- BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
- Operating Environment: Waterproof* design allows for use in nearly any environment.
- Brake: Proportional
- Reversible: Yes, but may be disabled for racing.
- On/Off Switch: Yes, waterproof
- Cooling Fan: Yes, factory equipped (40MM), fully removable** (See Product Use Statements below)
- Size: L x W x H 69.5mm x 54.1mm x 47mm
- Weight (with no battery connector): 5.75 oz. (163 grams)
- Connectors: 6.5mm female bullets for motor connection
- Motor:
- Input Voltage Range: 3s-8s LiPo
- Kv: 1650
- Max. RPM: 60,000
- Size: Length: 3.50” (88.8mm); Diameter: 1.64” (41.6mm)
- Weight (w/wires): 17.92 oz. (508g)
- Shaft Diameter: 5mm
- Mounting Hole Specifications: M3 and M4@25.4mm (1.0") Diameter
- Cooling Fan: Not available
- Connectors: 6.5mm male connectors
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Link included) and freely downloadable Castle Link Windows™ software, or the Castle Link iOS® or Android® app with B-LINK™ Bluetooth™ Adapter (sold separately).
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX transmitters.
Product Use Statements:
- Recommended battery capacity for 1:6th scale vehicles is 5000mah. Castle recommends using 50C continuous discharge or higher LiPo batteries.
- Surge ratings should never be used to determine a pack’s suitability for a brushless application.
- Castle recommends a high current connector designed for high-powered electric systems, rated for 100+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors.
- Applying voltages higher than 33.6V will cause irreparable damage to ESC.
- Although Mamba Monster X 8S is waterproof, it is NOT intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt.
- The cooling fan must be removed prior to driving in wet conditions. *Fan is not waterproof.
- Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the motor or ESC.
- The 1520-1650Kv is a water resistant design. The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommends applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to the Running & Maintaining document in the resources tab above for info on running and maintaining motors in wet environments.
- Application Guidelines: Mamba Monster X 8S and 1520-1650kV motor is intended for use in 1/6, 1/7 and 1/8 scale vehicles weighing up to 18 lbs. and running up to 8s LiPo. Examples include Losi LST2-E™; Arrma™: Limitless™, Typhon™ 6s, Kraton 6s™, Kraton EXB™, Infraction™ Felony™ 6s, Notorious 6s™, Talion™ 6s; Kyosho Inferno™, Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™
Includes:

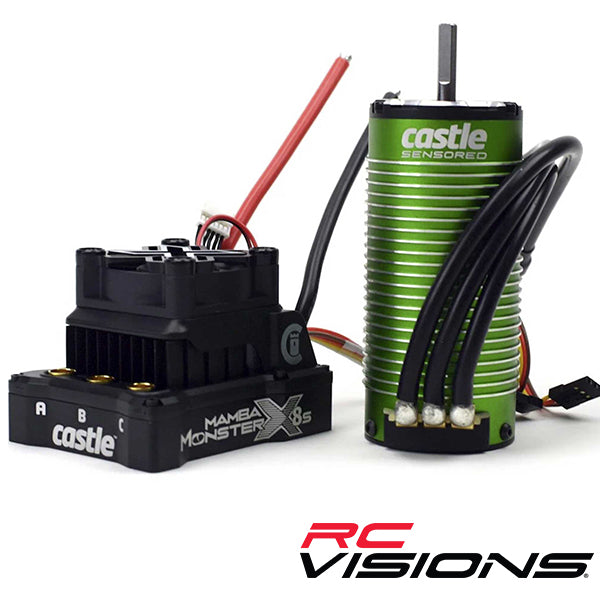

- Mamba Monster X 8S ESC
- 4-POLE Sensored 1520-1650KV Motor
- Castle Sensor Harness Adapter (installed)
- 200mm Sensor Wire
- Mamba Decals
- Coupon for free Castle Link USB
- ESC Quick Start Guide
- Motor Quick Start Guide
/
