Features:
- Compatible with rock crawlers all the way to 1/6 scale
- Capable of running on up to 6S LiPo battery
- Field Oriented Control (FOC) system with buttery smooth powerful torque
- Increased maximum power output by 106% and efficiency by 11%
- Intelligent torque output and speed closed-loop control
- Adjustable drag brake & drag brake rate with a maximum drag brake of up to 200%
- Built-in precision magnetic encoding sensor
- CNC-machined finned aluminum case
- 200°C high-temperature-resistant enameled wire
- IP67 waterproof and dust-proof design
Includes:

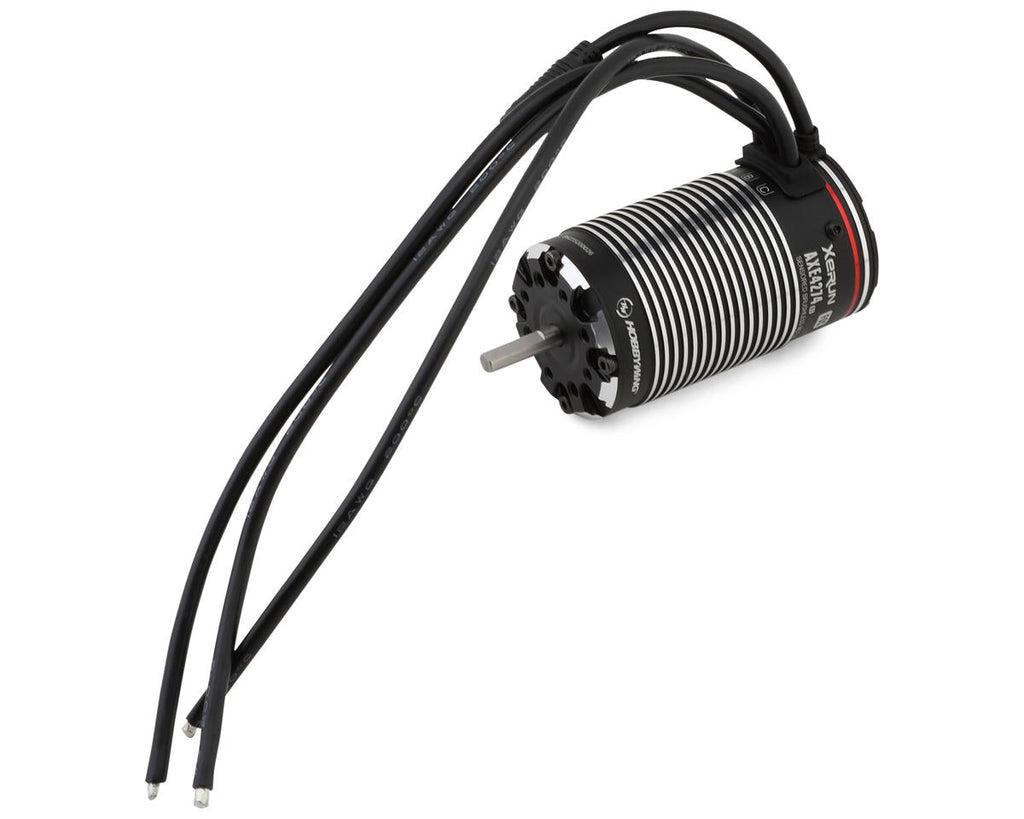

- (1) Xerun AXE 4274SD Brushless Sensored Motor (2000KV)
- Product Manual
Specifications:
| Suggested Application |
1/8-1/6 Rock Crawlers |
| Type |
Sensored - Brushless |
| Size/kV Rating |
2000kV |
| Input Voltage |
3-6S (11.1-22.2V) LiPo |
| Poles |
4 |
| No Load Current |
4.5A |
| Watts: |
- |
| Length |
2.91in (74mm) |
| Diameter |
1.65in (42mm) |
| Shaft Length |
0.73in (18.5mm) |
| Shaft Diameter |
0.197in (5mm) |
| Weight |
14.63oz (415g) |
*Tech Note: The default installed mounting holes are 25.4mm, please use the optional AXE 4274 motor conversion board if the mounting holes are 30mm.
