Furitek Torpedo Brushless ESC & Motor Combo (SCX24)
Features:
- Python ESC
- Support Sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
- FOC (Field-oriented control) technology
- Water-proof CNC-machined aluminum case
- Built-in wireless
- Built-in HV switchable BEC
- Built-in switch power
- Super easy programming via App on both Android and IOS
- Lifetime free firmware updates
- Compact and lightweight
- Real-time telemetry up to 10Hz
- Cedar Motor
- Special designed 12-Pole Inrunner brushless motor for most efficiency
- Water and dustproof design
- Small, compact, easy to be installed in tight spaces
- Stylish with aluminum case, anodized with red and black
- Super quiet, high torque, powerful and super slow speed yet tons of wheel speeds when needed
- CNC machined 6061 T6 billet aluminum heatsink can great heat dissipating to maximizes efficiency
- Super thin (0.2mm) stator laminations
- High RPM ABEC5 bearings
- Precision balanced rotor, smoothness for best reliability, and maximum RPM
- Precision engineered for maximum energy conversion
- All hardware included
Specifications:
- ESC:
-
Input Voltage: 2S-4S lipo
-
BEC: 5.5V-8.4V Switchable
-
Constant current: 40A
-
Burst current: 70A
-
Dimensions (LxWxH): 1.57x0.78x0.6" (40x20x15mm)
-
Weight: 0.2oz
-
Current Protection: Yes
- Motor:
-
KV: 3456kV
-
Pole: 12
-
LiPo: 2S-3S
-
Resistance: 0.17Ohm
-
No Load Current: 07A @10V
-
Size : 18x25mm diameter (0.7x1")
-
Weight: 20g (0.7oz)
-
Application: 1/24 Micro Crawlers

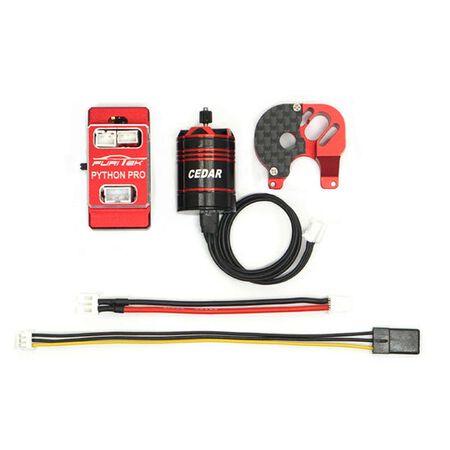

Includes:
- (1) Python Pro 40A (Brushless/Brushed) Micro Waterproof ESC
- (1) Cedar 3456kV Inrunner Brushless Motor
