Fitment Note:
The Losi 1/6 Super Baja Rey 2.0 Desert Truck requires using the Losi Super Baja/Rock Rey 1/5 Servo Mount (LOS351010 - Sold Separately)
The Axial 1/6 SCX6 Rock Crawler requires using the servo mount adapters included with the kit or in the front servo mount with engine cover (AXI251005 - Sold Separately)
Includes:

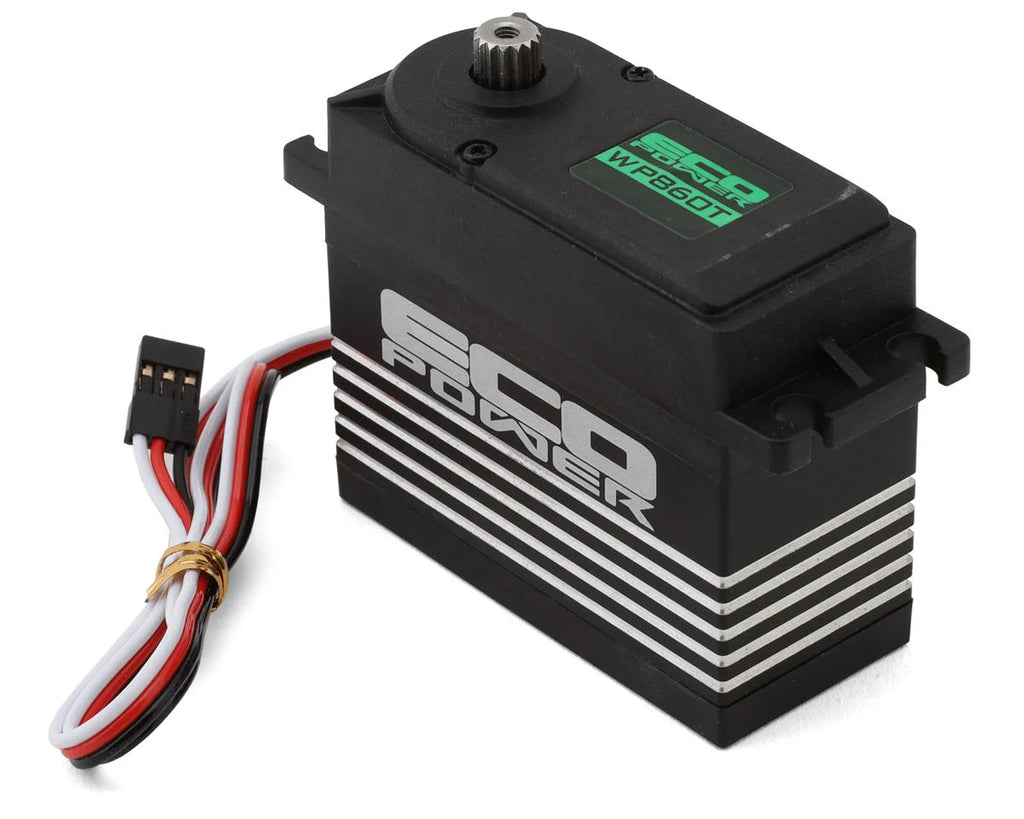

- (1) WP860T Servo
- Composite servo horns and mounting grommets
Servo Specifications:
| Scale: |
1:5 |
| Voltage Range: |
6.0V - 8.4V |
| Operating Temperature: |
14° to 140° F (-10 to +60° C) |
| Speeds: |
6.0V: 0.15/60° sec
8.4V: 0.13/60° sec |
| Torque: |
6.0V: 667 oz-in (48 kg-cm)
8.4V: 861 oz-in (62 kg-cm) |
| Motor Type: |
Brushed |
| Output Shaft: |
15 Tooth |
| Gears: |
Steel |
| Weight: |
195g |
| Pulse/Frequency: |
1520 / 330hz |
| Dimensions: |
2.36x1.18x2.5in (60x30x63x35mm) |
| Height (Base to Mount): |
40.8mm |
