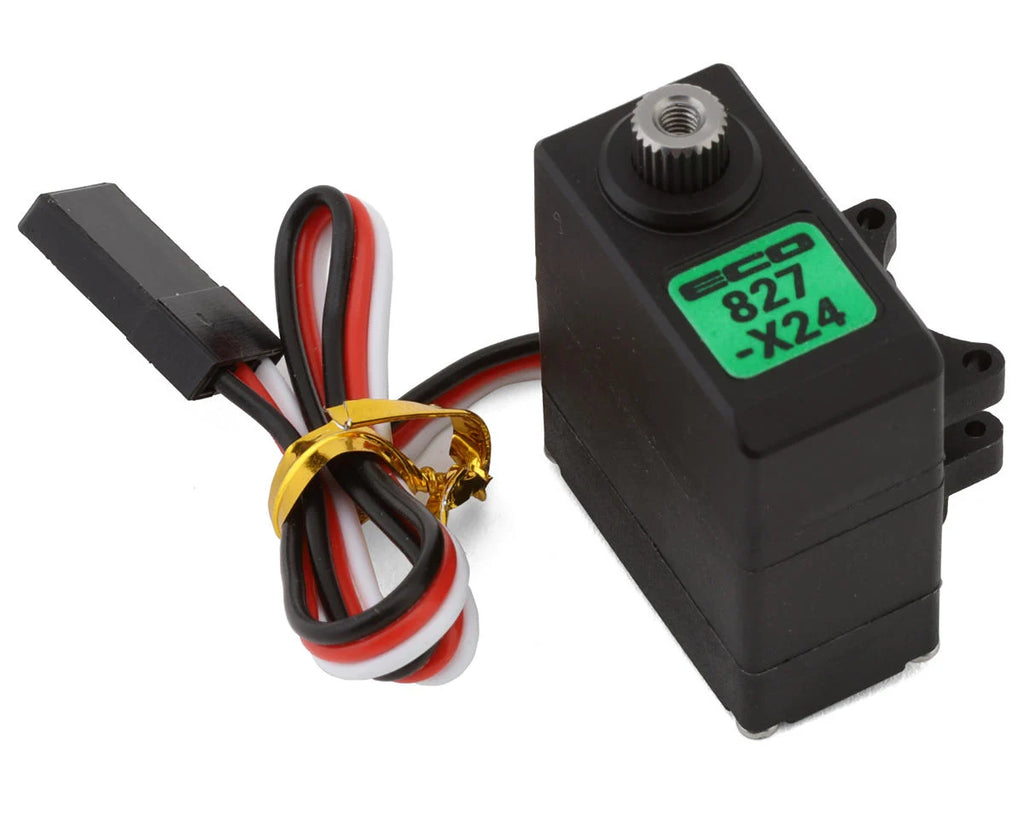

About the WP827-X24 Servo
Design
Unlike all other traditional servos on the market, the EcoPower WP827-X24 micro Servo features a first of its kind innovative built-in direct axle and links mount system that revolutionized the game by allowing the WP827-X24 to be directly mounted to the SCX24 axles with no need for a servo mount! This brilliant mounting system provides a sturdy and rigid fit with extra clearance between the chassis rails!
High Torque & Speed
Whether you are into hardcore Comp rock crawling, backyard crawling or just hitting the trails, a high-torque and speed steering servo will always be at the top of the upgrade list, especially for rigs equipped with heavier tuning weights and wheels! This EcoPower WP827-X24 micro servo is capable of outputting 62.5oz.in (4.5Kg-CM) of torque and 0.08 sec/60 of speed at 8.4 Volts that will help your SCX24 elevate steering performance and precision to take on harder lines and harsher trails!
Robust Construction & Drivetrain
When it comes to durability and reliability, the EcoPower WP827-X24 micro servo is fitted with all metal heavy-duty gears, output shaft spline and an aluminum mini 25T servo horn to ensure maximum durability and flex-free operation under the harshest conditions! In addition, the EcoPower WP827-X24 is fully elements and waterproof! Allowing you to navigate through wet and dirt-filled trails with peace of mind!
Features:
- The ultimate budget upgrade for Axial™ SCX24
- High torque and speed output
- Innovative direct axle mount
- Eliminates the need for separate servo mount
- High voltage capable of operating on up to 8.4 Volts!
- HD all metal gears and output shaft spline
- Waterproof design
- Powerful coreless motor
- Includes a CNC-machined aluminum horn with multiple mounting holes
- 1-year warranty
Includes:
- (1) WP827-X24 Digital Micro Servo
- (1) Aluminum Servo Horn
- (2) Composite Servo Horns
Specifications:
| Application |
1/24 & 1/18 |
| Input Voltage |
6V-8.4V |
| Speed |
|
| @6.0V: |
0.10 sec/60 |
| @8.4V: |
0.08 sec/60 |
| Torque: |
|
| @6.0V: |
48.6oz.in (3.5Kg-CM) |
| @8.4V: |
62.5oz.in (4.5Kg-CM) |
| Motor |
Digital Coreless |
| Output Shaft |
Mini 25T |
| Gear Material |
Metal |
| Dimensions (LxWxH) |
0.9x0.47x1.25in (23x12x31.75mm) |
| Weight |
16g |
*Tech Note: This servo is compatible with all SCX24 platforms and wheelbase EXCEPT the Deadbolt version!
**Tech Note: Do not exceed 8.4 Volt as it might damage the servo
***Tech Note: Although this servo is waterproof, submerging it under water for longer periods may degrade and decay the seal points
