Includes:

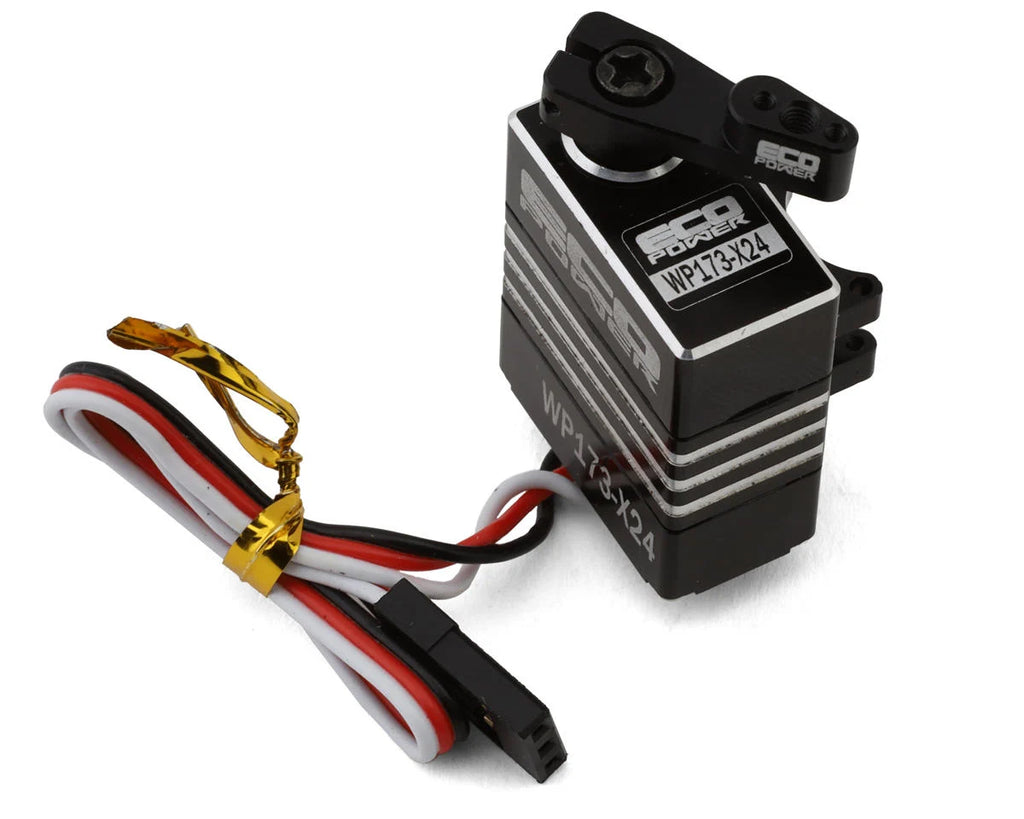

- (1) WP173-X24 Aluminum Digital Micro Servo
- (1) Aluminum Servo Horn
- (2) Composite Servo Horns
Specifications:
| Application |
1/24 & 1/18 |
| Input Voltage |
6V-8.4V |
| Speed |
|
| @6.0V: |
0.09 sec/60 |
| @8.4V: |
0.07 sec/60 |
| Torque: |
|
| @6.0V: |
123oz.in (8.9Kg-cm) |
| @8.4V: |
173oz.in (12.5Kg-cm) |
| Motor |
Digital Coreless |
| Output Shaft |
Mini 25T |
| Gear Material |
Metal |
| Dimensions (LxWxH) |
0.9x0.47x1.25in (23x12x31.75mm) |
| Weight |
16g |
*Tech Note: This servo is compatible with all SCX24 platforms and wheelbase EXCEPT the Deadbolt version!
**Tech Note: Do not exceed 8.4 Volt as it might damage the servo
***Tech Note: Although this servo is waterproof, submerging it under water for longer periods may degrade and decay the seal points
