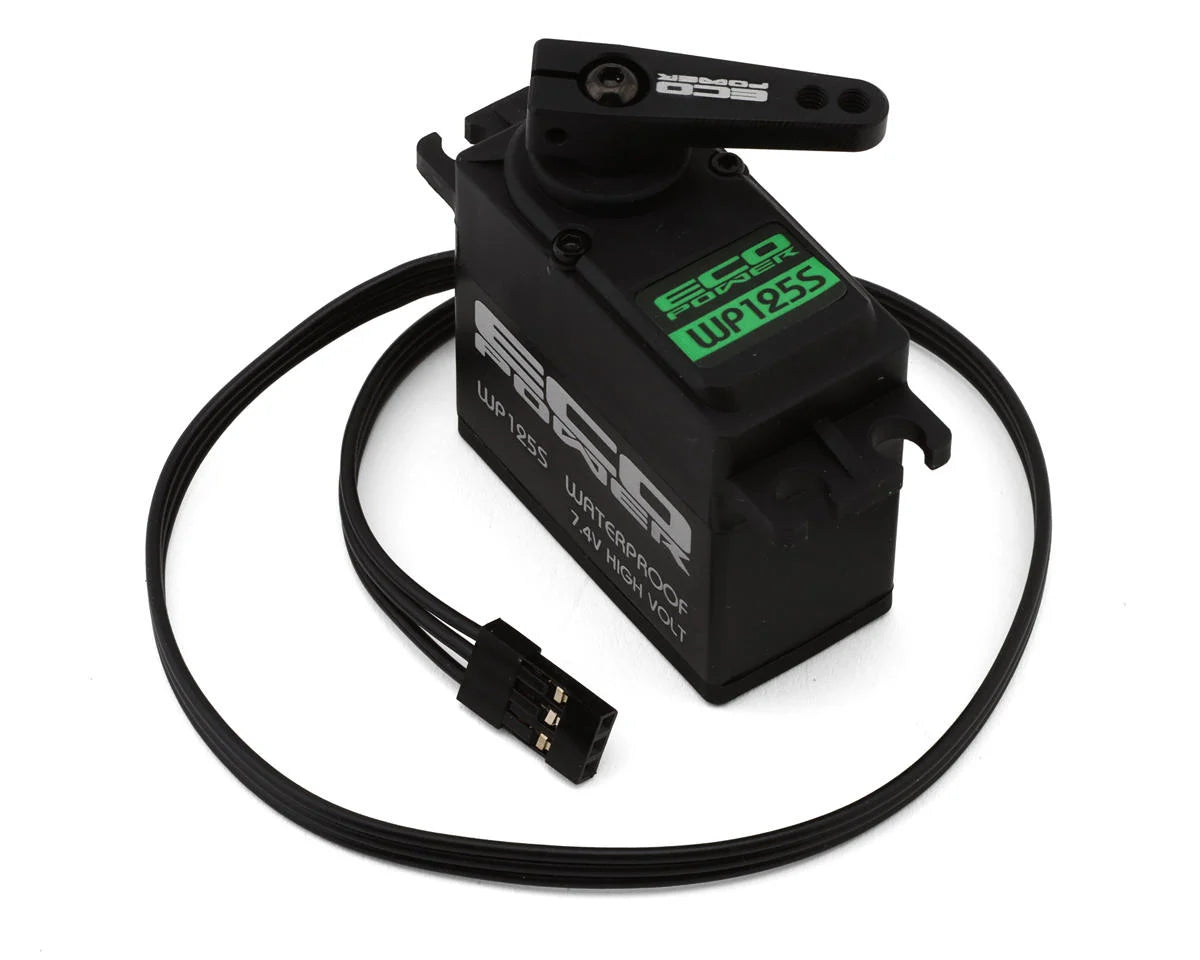

EcoPower WP125S Waterproof High Speed Metal Gear Digital Servo (HV)
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- 360 ounce-inches of torque output at 7.4V for strong steering authority
- 0.07 second transit speed for fast, responsive control
- Full steel geartrain built to withstand crashes and hard landings
- Digital circuitry for precise movement and modern stability systems
- Waterproof rating to one meter for confident all-weather running
- 8.4V high-voltage capable for smoother, stronger steering feel
- Rugged case design for long-lasting reliability in harsh conditions
Includes:
- (1) Lifetime Gear Warranty
- (1) Lifetime Gear Warranty
- (1) WP125S Waterproof High Speed Metal Gear Digital Servo
- (1) Aluminum Clamping Servo Horn (25T)
- Servo Hardware & Grommets
Specifications:
| Application |
1/10 & 1/8 |
| Operating Voltage |
6-8.4V |
| Operating Temperature |
14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V |
0.09/60° sec |
| Operating Speed @ 7.4V |
0.07/60° sec |
| Dynamic Torque @ 6.0V |
285oz-in (20.5 kg-cm) |
| Dynamic Torque @ 7.4V |
360oz-in (25.9 kg-cm) |
| Motor Type |
Coreless |
| Output Shaft |
25T |
| Gears |
Metal w/Lifetime Gear Warranty
|
| Pulse/Frequency |
1520s / 333hz |
| Dimensions |
1.56x0.79x1.53in (39.5x20x38.9mm) |
| Weight |
2.51oz (71.1g) |
