Includes:

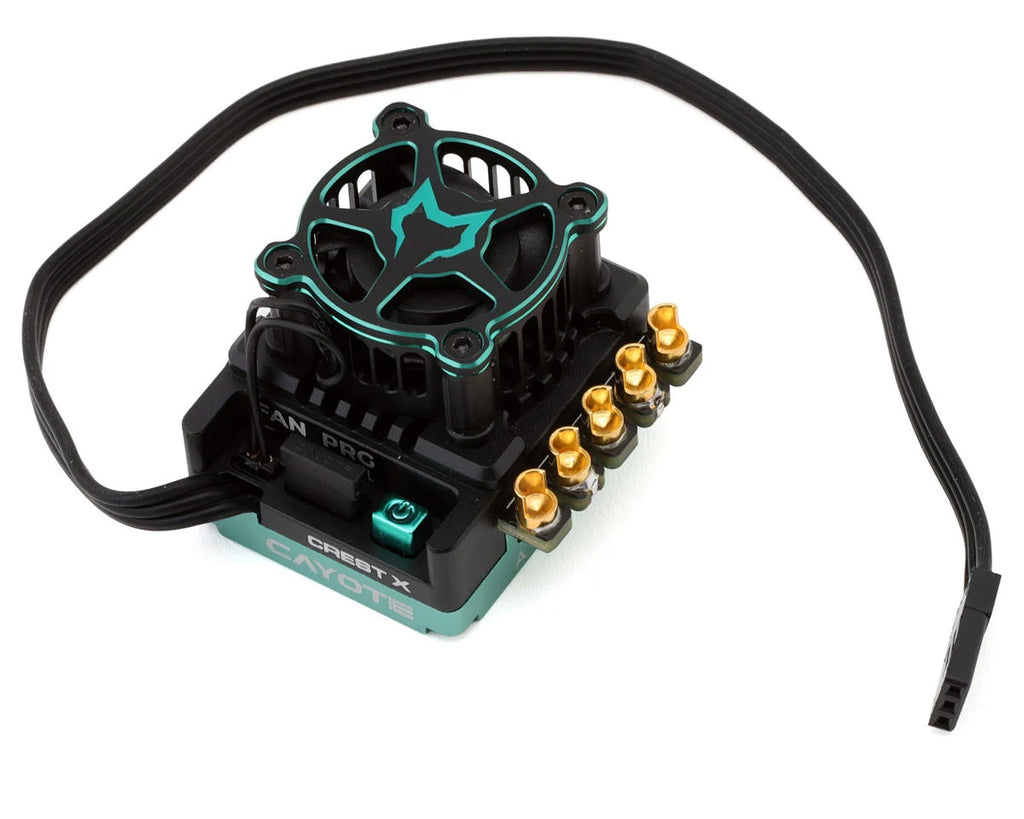

- (1) Crest X 1/10 160A Sensored Brushless Mod Competition ESC
- (1) Glitch Buster
- (1) Capacitor
- (2) Sensor Cables
- (4) Black 13AWG Wire Connectors
- (1) Red 13AWG Wire Connector
- (1) Heat Shrink Tube Set
- (1) Double-Sided Mounting Tape
- Instruction Manual
Specifications:
| Suggested Application |
1/10 Touring Cars & Off-Road Vehicles |
| Motor Type |
Brushless - Sensored/Sensorless |
| Input Voltage |
2S LiPo (7.4V) |
| Continuous Current |
160A |
| Peak Current |
1100A |
| Dimensions (LxWxH) |
1.49x1.24x1.18in (37.9x31.4x30mm) |
| Weight |
1.94oz (55g) |
| Motor Limits: |
|
| 1/10 Touring Car |
>4.5T |
| 1/10 Off-Road |
>5.5T |
| BEC Voltage |
6.0/7.4V |
| BEC Continuous Current |
5A |
| BEC Peak Current |
8A |
| Motor Connector |
Solder |
| Battery Connector |
Solder |
| Motor Wire |
13AWG |
| Battery Wire |
13AWG |
| Throttle Wire |
- |
| Programmable |
Yes, with Cayote Xlink Program Box* |
*Tech Note: The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) is required to read the data. Optionally, you can also use the Cayote BTune 1/10 ESC Bluetooth Module (CYECBM01 - sold separately) to connect to the Cayote Team App and set the parameters and update the firmware.
