Includes:

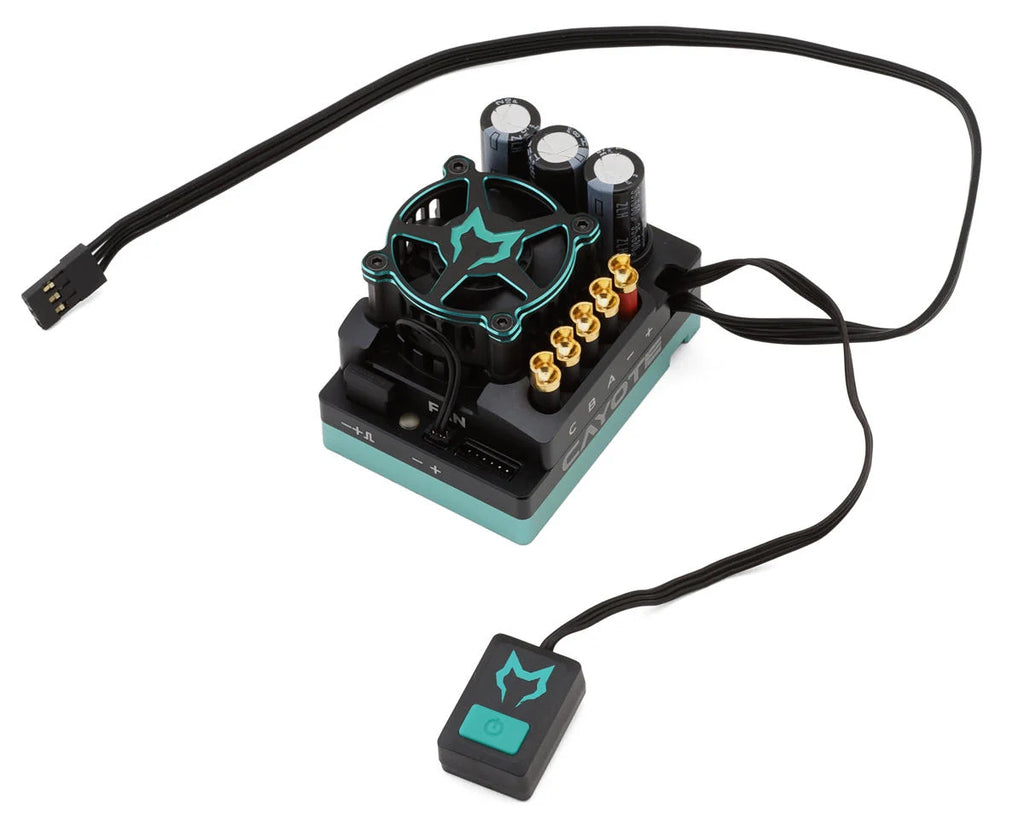

- (1) Crest 8 1/8 200A Sensored Brushless ESC
- (1) Glitch Buster
- (1) Sensor Cable
- (3) Black 10AWG Wire Connectors
- (1) Black 13AWG Wire Connector
- (1) Red 13AWG Wire Connector
- (1) Heat Shrink Tube Set
- (1) Double-Sided Mounting Tape
- Instruction Manual
Specifications:
| Suggested Application |
1/8 Buggies, Truggies & Trucks |
| Motor Type |
Brushless - Sensored/Sensorless |
| Input Voltage |
2-4S LiPo (7.4-14.8V) |
| Continuous Current |
200A |
| Peak Current |
1080A |
| Dimensions (LxWxH) |
2.24x1.64x1.57in (56.8x41.6x40mm) |
| Weight |
4.3oz (122g) |
| Motor Limits |
4268/4274 3000kV Maximum with 4S Lipo |
| BEC Voltage |
6.0/7.4V |
| BEC Continuous Current |
8A |
| BEC Peak Current |
12A |
| Motor Connector |
Solder |
| Battery Connector |
Solder |
| Motor Wire |
10AWG |
| Battery Wire |
13AWG |
| Throttle Wire |
- |
| Programmable |
Yes, with Cayote Xlink Program Box or Cayote Team App |
*Tech Note: The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) or Cayote Team app are required to read the data.
