Types of RC Car Battery Connectors: Guide to Choosing the Right Connector

If you’ve ever opened the hood of an RC car or tried to charge a new pack, you’ve probably noticed the plugs don’t all look the same.

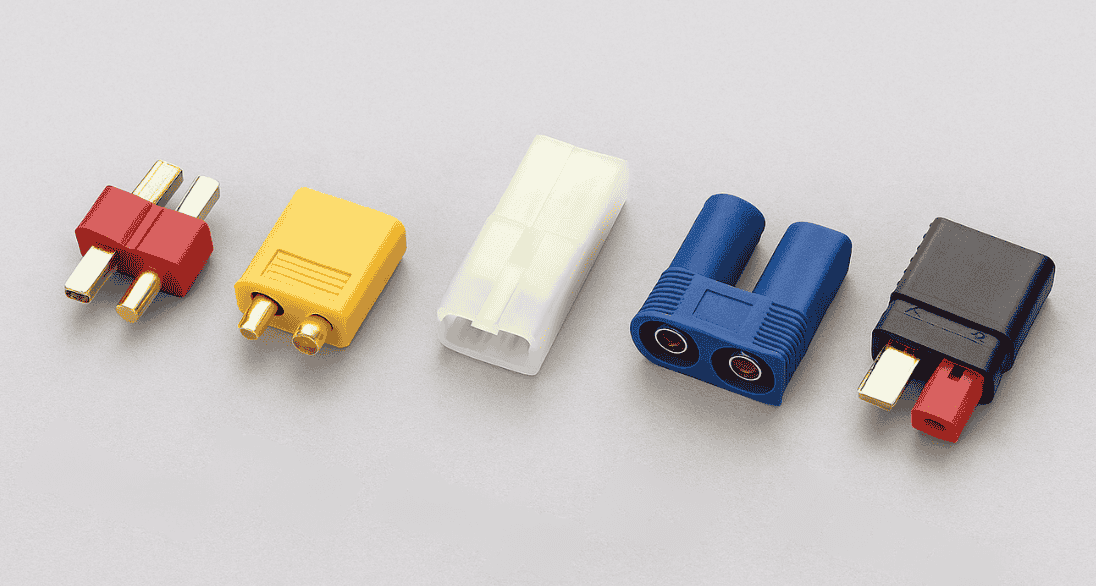

One car has a chunky yellow connector, another has a red T-shaped plug, and your charger might not even fit either of them. For a beginner, it can feel like an unnecessary maze of plastic housings and wire leads.

And yet, that little piece of plastic and metal decides more than you’d think. A connector that matches your car and charger means smooth runs, full power, and batteries that don’t overheat.

This guide walks you through the types of RC car battery connectors you’ll actually come across, what each is good for, and how to know which one belongs in your setup.

And if you’re already sorting through options, start with our collection of RC car batteries - the easiest way to match the right plug to the right pack.

The Basics of RC Car Battery Connectors

Pop the body shell off any RC car and you’ll see a tangle of wires leading back to one small but critical piece: the connector.

That little plug is what lets the battery feed current into the speed controller, the motor, or the charger on your bench. Without it, the pack is just a dead weight.

What’s Actually in a Connector

• A plastic shell that keeps the contacts aligned so you don’t reverse polarity by mistake

• A pair of metal tabs or pins that carry the current - brass on cheaper plugs, gold-plated on higher-end ones

• The wire lead soldered to your battery pack, which transfers that current forward into the circuit

Quick definition: An RC battery connector is the bridge between your pack and the rest of your electronics.

Why It Matters in Real Use

• A good connector delivers full current to the motor, which keeps heat down and performance consistent.

• A bad one feels warm after a short run, throws sparks when you plug it in, or leaves you wondering why your pack never seems to charge all the way.

• Over time, connectors also take abuse - constant plugging and unplugging, tugging at wires, and vibration from the chassis. A durable design makes the difference between running laps and sitting on the bench with melted plastic.

Key Factors When Choosing a Connector

When you’re choosing between the different types of RC car battery connectors, these are the details that decide how well your setup will run:

Compatibility

A connector has to line up with the charger too. Miss that detail and you’ll be stuck with adapters - which add resistance, run hotter, and usually turn into the weakest link in your setup.

Current Rating

JSTs and old-style Tamiya plugs were fine back when cars pulled single-digit amps. Hook them to a LiPo buggy and they’ll melt halfway through the run. XT60s, EC5s, and Traxxas plugs exist for a reason: they’re built to feed 60, 80, 100+ amps.

Size and Weight

It’s tempting to grab the chunkiest plug you can find, but on a light 1/10 buggy an XT90 is just extra weight dangling off the pack. Deans or XT60 give you the amps you need while keeping extra weight off the chassis. Save the heavy plugs for 1/8 scale trucks or anything with oversized motors.

Installation

Some packs come pre-wired - great for beginners or parents buying spares. But if you’ve got an iron and some patience, swapping all your packs and ESCs to one connector type saves a lot of headaches. Every battery, every lead, one standard.

Wire Length & Resistance

Those long, loopy wires you see on some packs don’t just look messy. Every extra inch adds resistance, which means less punch at the wheels. Short, tidy leads transfer more of the battery’s power straight to the motor.

Price

Basic plugs such as Tamiya or JST are inexpensive and easy to find. Connectors with gold plating or anti-spark features cost more but hold up better under repeated use and higher loads.

Quick tip: Most manuals call out the connectors the electronics were tested with. It’s worth checking before you buy - not every plug that “looks close” will actually fit.

Looking at chargers to go with your packs? Browse our RC car chargers.

Common RC Battery Connector Families

Every hobbyist eventually develops a favorite connector, but when you’re starting out it helps to see the options side by side.

The RC market itself is on track to nearly double to USD 775 million by 2030 - which means more cars, more batteries, and yes, more connectors to sort through.

Below is a quick comparison of the most common RC car battery connector types you’ll run into, with their typical amp ratings, best uses, and trade-offs.

Connector	Amp Rating	Best For	Pros	Cons
Tamiya / JST	5-10A	Entry-level cars, toy-grade, small planes	Cheap, easy to find	Weak under load, not LiPo safe
Deans (T-Plug/Ultra)	Up to 60A	1/10 cars, boats, planes	Compact, low resistance	Can be tricky to solder
XT Series (XT30, XT60, XT90)	30-90A	LiPo buggies, trucks, drones	Secure fit, anti-spark, widely used	Larger sizes add bulk
EC Series (EC3, EC5)	60-120A	Large trucks, 1/8 scale, high-draw setups	Heat-resistant nylon, gold contacts	Bigger/heavier, pricier
IC Smart (IC3, IC5)	60-120A + data	Spektrum Smart LiPos	Adds battery/charger data link, EC-compatible	Proprietary, higher cost
Traxxas	Up to 100A	RTR Traxxas trucks & cars	Secure, easy to install	Brand-specific, less universal
JR / Molex / Niche	1-3A	Receivers, servos, signal leads	Lightweight, compact	Not for powering motors

Tamiya & JST Connectors

If you’ve handled older RC cars or entry-level packs, chances are you’ve seen a white plastic Tamiya plug or a small red JST. They’re among the most basic types of RC car battery connectors, and they still show up in toy-grade vehicles, starter kits, and lightweight models.

What they are

• Tamiya connectors: recognizable by their square white housing and flat pins, originally popularized in the ’80s by Tamiya kits.

• JST connectors: small red plugs often used in mini drones, receivers, or micro RC cars.

Typical current handling

• JST: 5-10 amps

• Tamiya: around 10 amps

That’s fine for small brushed motors or NiMH packs, but nowhere near what a LiPo buggy or brushless system demands.

Where you’ll see them

• Toy-grade RC cars and trucks

• Entry-level buggies and on-road cars

• Small planes and boats running brushed setups

• Receivers or accessories that draw very little current

Pros

• Cheap and easy to find

• No soldering knowledge required (most come pre-installed)

• Lightweight for micro setups

Cons

• Heat up quickly under higher loads

• Not safe for LiPo packs pulling serious current

• Prone to loosening with repeated use

• Higher resistance = less punch at the wheels

Tamiya and JST connectors are fine for small, low-current vehicles - but if you’re upgrading to LiPo or brushless, they’re the first thing you’ll want to replace.

Deans (T-Plug / Ultra) Connectors

For a long time, Deans connectors were the standard upgrade in the RC world. If you bought a pack labeled “T-Plug” or “Ultra Plug,” you were getting Deans. They’re still one of the most recognized RC car connector types because they balance compact size with enough current capacity for most 1/10 scale cars.

What they are

• A flat, T-shaped plug with two gold-plated tabs in a red plastic housing.

• Male and female ends lock tightly, which keeps polarity secure.

Typical current handling

• Up to 50-60 amps continuous, which covers most brushed and brushless 1/10 setups.

Where you’ll see them

• 1/10 buggies and short course trucks

• Medium-size RC boats and planes

• Older LiPo packs (many still ship with Deans as standard)

Pros

• Compact - doesn’t add bulk to smaller cars

• Low electrical resistance compared to Tamiya/JST

• Widely available, still a common choice for hobbyists

Cons

• Can be tricky to solder (thin tabs heat up fast)

• Not ideal for very high current draws (big brushless 1/8 scale setups can push them too far)

• Compatibility can be confusing, since “T-Plug” and “Deans” are often used interchangeably but not all clones are built to the same quality

Deans plugs remain one of the most versatile types of RC car battery connectors for hobbyists, especially in the 1/10 scale range. They’re small, efficient, and widely supported - but if you’re moving into higher-current setups, XT or EC plugs will serve you better.

XT Series (XT30, XT60, XT90)

If there’s one family of plugs that defines modern RC, it’s the XT series. Whether you’re running a micro drone on an XT30 or a 1/8 buggy on an XT90, these are among the most widely used types of RC car battery connectors thanks to their balance of reliability, safety, and current capacity.

What they are

• XT connectors are nylon housings with gold-plated bullet contacts molded inside.

• They snap together firmly, with keyed housings that prevent reverse polarity.

• Available in multiple sizes: XT30 (30A), XT60 (60A), XT90 (90A).

Typical current handling

• XT30: up to 30 amps - small drones, micro RC cars, FPV gear.

• XT60: up to 60 amps - the go-to for most 1/10 scale LiPo setups.

• XT90: up to 90 amps - used on 1/8 scale, larger brushless rigs, and high-draw vehicles.

Where you’ll see them

• XT30: micro drones, tiny brushless RC cars.

• XT60: 1/10 buggies, touring cars, and many LiPo packs right out of the box.

• XT90: 1/8 buggies, monster trucks, and heavy-duty brushless builds.

Pros

• Widely adopted - easy to standardize across all your gear.

• Secure, keyed design prevents accidental polarity swaps.

• Nylon housing resists heat better than older Tamiya designs.

• Anti-spark versions (XT90S) protect connectors and electronics during plug-in.

Cons

• Larger versions (XT90) add noticeable bulk and weight.

• Need soldering skills if you’re swapping connectors yourself.

• Knockoff XT plugs sometimes use low-quality metals, which overheat under load.

The XT family is one of the safest bets for hobbyists today. XT60s in particular dominate the 1/10 scene, making them the most common RC battery connector type for LiPo-powered cars. XT90s handle heavy trucks and high-current setups, while XT30s keep micros light and efficient.

EC Series (EC3, EC5)

The EC series is another popular family of RC car battery connector types, especially among pilots and surface drivers who value a snug, low-resistance fit. You’ll often see EC3 and EC5 plugs bundled with batteries or ESCs from brands like E-flite and Horizon Hobby.

What they are

• Cylindrical, gold-plated bullet connectors molded into blue nylon housings.

• The number refers to the pin size: EC3 uses 3 mm bullets, EC5 uses 5 mm.

• Designed for a snap-fit connection that doesn’t loosen easily.

Typical current handling

• EC3: around 60 amps continuous - fine for 1/10 scale cars and smaller brushless setups.

• EC5: up to 120 amps continuous - built for 1/8 scale cars, large trucks, and high-draw applications.

Where you’ll see them

• EC3: smaller brushless RC cars, park flyers, and drones.

• EC5: 1/8 scale monster trucks, larger helicopters, and boats.

Pros

• Heat-resistant nylon housing.

• Gold-plated contacts reduce resistance and improve conductivity.

• Reliable snap connection - less likely to work loose under vibration.

Cons

• Bulkier than Deans or XT60 at the same current rating.

• More expensive than Tamiya or Deans plugs.

• Not as universal as XT series - you may need adapters when mixing brands.

EC connectors are solid, reliable plugs that perform especially well in high-current setups. EC3 covers most 1/10 cars, while EC5 is built for 1/8 scale and beyond.

IC Smart Connectors (IC3, IC5)

If you’ve seen a connector that looks like an EC plug but with an extra little tab inside, you’ve spotted an IC connector. These are part of the Spektrum SMART technology ecosystem, designed to do more than just pass current - they also transfer data.

What they are

• Built on the EC design: IC3 = 3 mm bullets, IC5 = 5 mm bullets.

• Adds a third contact tab plus a signal wire, which carries battery health and charging data.

• Fully compatible with EC plugs - you can plug an IC3 into an EC3, or an IC5 into an EC5, but the “Smart” data feature only works with Spektrum Smart batteries and chargers.

Typical current handling

• IC3: around 60 amps continuous.

• IC5: up to 120 amps continuous.
  (Same as their EC counterparts, since the power pins are identical.)

Where you’ll see them

• Spektrum Smart LiPo batteries.

• Horizon Hobby’s RTR vehicles equipped with Smart technology.

• Setups where hobbyists want plug-and-play battery data (voltage, cycles, charge health).

Pros

• Backwards compatible with EC connectors.

• Adds battery telemetry when paired with Smart chargers.

• Same reliable snap-fit design as EC plugs.

• Useful for monitoring pack health over time.

Cons

• Proprietary - full features only work with Spektrum Smart gear.

• More expensive than standard EC plugs.

IC connectors are a smart evolution of EC plugs. For most setups, they perform just like EC3 or EC5. But if you’re running Spektrum Smart LiPos and chargers, they unlock extra data that can help you track battery health and charging cycles.

Traxxas Connectors

If you’ve bought a ready-to-run Traxxas vehicle in the last decade, you’ve already used these. Traxxas developed their own proprietary plug system, and it’s now standard across their entire RTR lineup. That means if you’re in the Traxxas world, you’ll be working with this connector whether you planned to or not.

What they are

• A chunky black housing with integrated spring contacts.

• Designed for high-current applications while staying easy to plug and unplug.

• Unique to Traxxas - you won’t find these shipped with batteries from other brands.

Typical current handling

• Up to ~100 amps continuous, which covers 1/10 and 1/8 Traxxas trucks and brushless systems comfortably.

Where you’ll see them

• RTR Traxxas models (Slash, Rustler, X-Maxx, etc.).

• Packs sold under the Traxxas brand.

• Chargers and accessories designed specifically for Traxxas customers.

Pros

• Strong, secure fit - resists loosening under vibration.

• Handles high current reliably.

• Easy for beginners to connect/disconnect (no fiddly solder tabs exposed).

Cons

• Proprietary - not widely supported outside of Traxxas.

• More expensive than universal plugs.

• Limits cross-compatibility if you want to mix brands without adapters.

Traxxas connectors do their job well and are beginner-friendly, but they lock you into the Traxxas ecosystem. For hobbyists who run multiple brands or like to standardize, this lack of universality can be frustrating.

JR, Molex, and Other Niche Connectors

Not every plug on an RC setup is there to power a motor. Smaller connectors like JR, Molex, and similar lightweight plugs are used for signal, receivers, servos, and accessories.

What they are

• JR connectors: small plugs most often used on servo leads and receiver packs.

• Molex connectors: lightweight plugs common in smaller electronics and older entry-level RC gear.

• Other niche plugs: used for LED kits, fans, or small onboard devices that don’t draw much current.

Typical current handling

• JR: 1-3 amps (signal + low power).

• Molex: 2-5 amps, depending on wire gauge.

Where you’ll see them

• Receiver battery connections.

• Servo leads.

• Low-power accessories like lighting systems.

• Older toy-grade RC cars and planes.

Pros

• Compact and lightweight.

• Easy to swap or extend with adapters.

• Standard across many servos and receivers.

Cons

• Not designed for powering motors.

• Low current capacity - melt risk if overloaded.

• Some variations are not cross-compatible.

If you’re replacing one, match the exact type - these plugs are less about amps and more about signal integrity.

Looking for a simple replacement? Check out the SON RC JR Connector.

Adapters and Compatibility

At some point, every RC hobbyist ends up with a battery that doesn’t match the car or charger. The quick fix is an adapter - a short lead that lets you plug one connector type into another. They’re handy, but they’re not a perfect solution.

When adapters make sense

• Testing a new battery when you don’t want to re-solder right away.

• Running a low-power car or plane where current draw is minimal.

• Keeping a “universal” charger lead that can handle multiple plug types.

Why adapters aren’t ideal

• Every extra connection adds resistance. More resistance = less voltage reaching the motor.

• Resistance also means heat, especially in high-current LiPo setups.

• Adapters create another potential failure point - one more piece that can loosen or melt.

Warning: In high-current RC cars (brushless 1/10 and up), adapters should only be temporary. They work in a pinch, but if you plan to keep using the battery, re-solder it with the right connector.

Tip: If you’re upgrading an entire fleet, pick one connector standard and stick to it. That way, every pack, ESC, and charger lead matches - no adapters needed.

Upgrading or Replacing Connectors

Sooner or later, you’ll outgrow the stock plugs on your batteries. Maybe the car came with a Tamiya, and you’ve since upgraded to LiPos. Maybe a connector melted after a few too many hard runs. Or maybe you’re just tired of adapters and want everything in your pit bag to match.

How to Identify Your Connector

• Look at the housing: shape and color usually give it away (yellow = XT60, blue = EC3/EC5, red = Deans).

• Check pin size: EC3 vs EC5 or XT60 vs XT90 come down to millimeter differences.

• Follow the wires: servo and receiver leads often use JR connectors, while main battery leads use XT/EC/Traxxas.

Signs It’s Time to Replace

• Plastic casing feels warm or soft after a run.

• Visible sparks when plugging in.

• Loose fit that wobbles or disconnects mid-run.

• Burnt smell near the plug or discolored pins.

Basics of Soldering Safely

• Always double-check polarity before soldering (red to +, black to –).

• Use heat shrink to cover exposed solder joints.

• Don’t rush - overheated pins can loosen inside the housing.

• Practice on scrap leads before working on your actual packs.

Tip: Standardizing all your gear on one connector type (XT60, Deans, EC5, etc.) makes charging and swapping packs much easier.

For smoother charging once you’ve upgraded your plugs, check our guide to the best LiPo battery chargers.

Advanced Considerations for Performance & Safety

Once you’ve got the basics down, it’s the small details that start to separate a decent setup from one that runs cooler, lasts longer, and delivers more consistent power.

Gold-Plated Contacts

Some types of RC car battery connectors come with gold plating on the pins. Gold doesn’t corrode, which means lower resistance and cleaner current transfer over time. The trade-off is price - you’re paying for durability and efficiency.

Heat-Resistant Housings

Connectors made with nylon can take more heat than the older plastic Tamiya-style plugs. That matters when you’re soldering and when you’re pushing high current loads - less chance of deformation or loosening.

Voltage Drop from Long Leads

Every extra inch of wire adds resistance. That resistance turns into heat and voltage loss, which is why cars with long, messy leads sometimes feel sluggish compared to ones with short, tidy connections.

Naming Differences to Watch For

• XT60 vs XT60i: The “i” adds anti-spark features but is still XT60-compatible.

• EC vs IC: Same fit, but IC adds data pins for Smart batteries.

• Deans vs T-Plug: Often used interchangeably, but clone quality varies.


Tip: If you’re chasing maximum efficiency, keep leads short, use quality connectors, and don’t skimp on soldering tools. Small choices here add up to cooler runs and longer battery life.

Final Thoughts: Picking the Right Connector for Your Hobby

The connector’s the choke point. The wrong plug sparks when you charge, runs hot after a few laps, or leaves you digging for adapters just to get a pack topped off. The right one disappears into the setup. It just works.

If You’re Starting Out

Go with whatever the manual calls for. Tamiya, JST, or EC3 will do the job, and you’ll spend your time driving instead of soldering.

If You’re Upgrading

Deans, XT60, or EC5 are the plugs most hobbyists standardize on. They handle the current, they’re everywhere, and once you swap everything over, you stop thinking about connectors altogether.

If You’re Chasing Power

Big brushless setups pull big amps. That’s where XT90, IC5, and Traxxas plugs hold their ground. They add some bulk, but they don’t choke under load.

When you’re choosing between the different types of RC car battery connectors, focus on matching the plug to your car’s draw and keeping everything consistent.

For packs that pair cleanly with the right connectors, check our batteries for RC vehicles.

FAQ

1. What are the different types of RC connectors?
The most common types of RC car battery connectors are Tamiya, JST, Deans (T-Plug), XT series (XT30, XT60, XT90), EC series (EC3, EC5), IC Smart (IC3, IC5), and Traxxas. Smaller plugs like JR and Molex are also used for servos, receivers, and low-power accessories.

2. What is the RC connection type?
“RC connection type” usually refers to the style of connector on the battery and ESC. Each type has a different shape, size, and current rating. To work safely, your battery, ESC, and charger all need to share the same connection type - or you’ll need adapters.

3. What connectors do RC servos use?
Most RC servos use a JR connector (or a compatible Futaba-style plug). These are small three-pin connectors that carry signal, power, and ground from the receiver to the servo. They’re not meant to power motors - just to control movement.

4. What is the difference between EC3 and EC5 connectors?
Both are part of the EC family and use the same snap-fit nylon housing. The difference is size and current handling: EC3 uses 3 mm bullets and handles about 60 amps, while EC5 uses 5 mm bullets and can handle up to 120 amps. EC5 is larger and better suited for 1/8 scale cars and high-draw setups, while EC3 fits most 1/10 scale cars.
